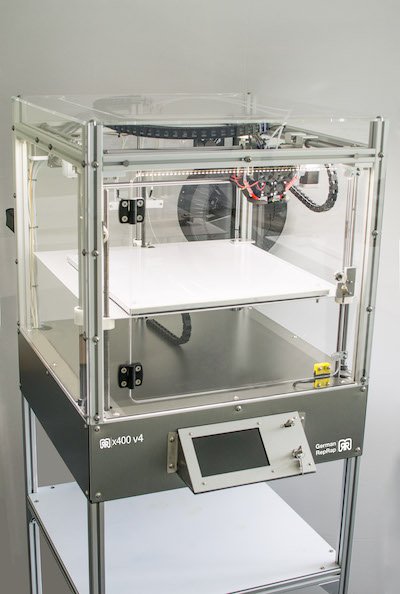

German RepRap X400 v4
German RepRap X400 v4
German RepRap, a leading manufacturer of Fused Filament Fabrication (FFF) 3D printers, has launched the X400 v4 for the additive manufacturing of large objects and limited industrial-grade production runs.
The new printer boasts high-end design and speed (application-dependent), and prints with a layer thickness of up to 0.1 mm. German RepRap has also worked to ensure the machine operates quietly. The company says high-end components, including milled metal parts and drives with tight tolerances, provide for high repeat accuracy in the industrial-grade machine.
Many new features, such as automatic bed leveling and a commercial-grade ventilation design are standard in the X400 v4. The automatic bed-leveling feature means the print bed needs to be calibrated only once, eliminating time-consuming adjustments before each print job. The new ventilation design ensures consistent operating temperatures throughout each job, which, in turn, improves process safety. Several dedicated fans in the printer maintain temperatures in the extruder, around the printed object as well as in the print area. This also improves the processing of materials such as PVA (polyvinyl alcohol).
German RepRap X400 v4
German RepRap X400 v4
Another new feature is the filament tracking system, which automatically pauses the active print job when the filament runs out. In addition, the X400 v4 senses variances in extrusion speed that are invisible to the naked eye, and it automatically reacts to secure the printing process and prevent print job cancellation.
Emphasising its suitability for industrial use, the new X400 v4 features an integrated industrial-grade computer and can be controlled via touch screen and a USB interface The printer connects to the internet via Ethernet and is controlled through a web browser.
The printer is supported by Simplify3D software, which contains all the features required for manufacturing industrial-grade objects. Individual parameter settings, adjustable to object geometry, allow for full control over the printing process. The software enables the use of dual extruders for printing a variety of materials and colours as well as for the repeated positioning of different objects in the print area. In addition, separate parameters can be set for printing different parts of a single object.
A user-friendly DD3 dual extruder technology with a full metal hot end rounds off the system’s upgraded features. The extruder can be fitted with different nozzles to adjust for various applications and materials to be used. Contact pressure is variable, as well, to facilitate the processing of softer materials.
