In metal additive manufacturing, attention is placed firmly on the build itself. Machine capability, laser precision, and part quality dominate investment decisions. Yet for many production teams, the most persistent challenges sit just outside the build chamber. Powder handling remains one of the most overlooked sources of inefficiency in AM.
Manual depowdering, inconsistent recovery methods, and open handling processes introduce variability at a stage where consistency is critical. Excess powder may be reclaimed, but how it is handled determines whether it is truly fit for reuse. Contamination risks, segregation, and uncontrolled exposure can all compromise powder quality long before it returns to the process. In many cases powder is recovered but not truly controlled.
This is where a shift in thinking is required.

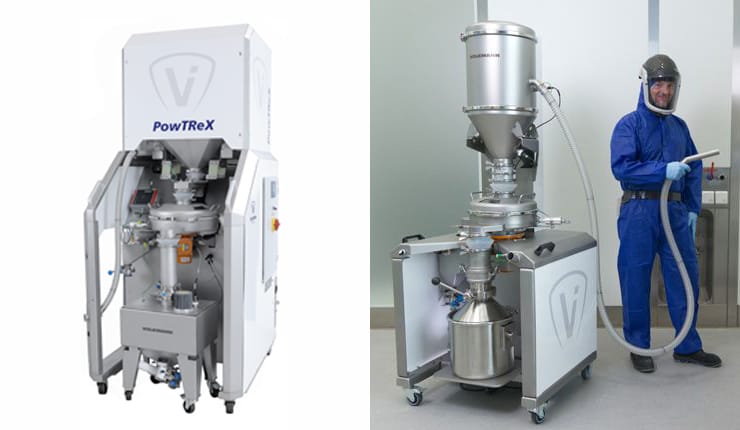

VOLKMANN PowTReX systems are designed to address this challenge directly, providing a full reprocessing system to ensure the highest quality powder is reclaimed. Not just recycling. Safe return-to-use.
Because quality metal parts are made from good powder.
PowTReX provides a fully contained approach to metal powder recovery, designed to bring control and consistency to every stage of the process. Following the completed build, excess powder is extracted directly from the build chamber using vacuum conveying with a controlled suction lance. This eliminates open handling and significantly reduces operator exposure, while maintaining a stable and predictable material flow.
The recovered powder is collected and controlled enabling accurate, measured dosing before being transferred into an integrated ultrasonic screening stage, where oversized particles and agglomerates generated during the build process are reliably removed. This ensures only powder within specification progresses further. Conditioned powder is then collected within a sealed system, ready for safe return-to-use or reintegration into the production cycle.
The result is not simply recovered powder, but powder that can be reused with total confidence.
As AM production grows in complexity and volume, flexibility becomes critical. A single PowTReX system can integrate with multiple 3D printers and is compatible with the majority of 3D printer brands to support fast-growing companies that need to scale yet refuse to waste precious metal powders. Systems can be configured as stand-alone units or integrated into fully closed-loop process. For applications requiring additional safety and control, inert gas conveying options are available.
For engineers and production managers, the operational impact is tangible. Faster, more consistent powder recovery and reduced manual handling. A safer process with improved cleanliness across the production environment. And most importantly, greater confidence in the material re-entering the build process.
In an industry where material performance directly defines part quality, these gains are not marginal. They are fundamental.
As additive manufacturing continues to scale, the focus is shifting from individual process steps to the stability of the entire production system. Powder handling is no longer a secondary consideration. It is a core part of process control. Production efficiency is won when operations recognise this and move beyond simply recovering powder to investing in solutions that enable safe, consistent return-to-use, without compromise.
To understand how controlled metal powder recovery can improve your AM process, contact VOLKMANN. Visit their website for more details.
