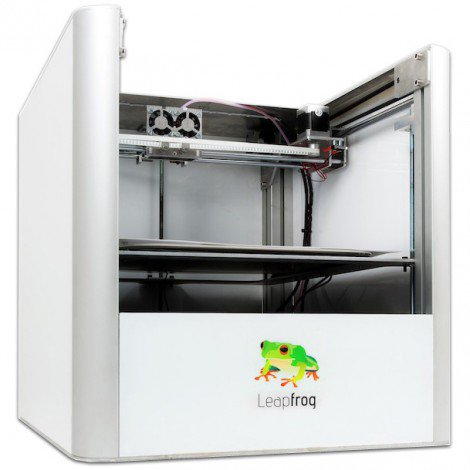

LeapFrog Creatr Front
Deepak was the lucky recipent of the first dual-extrusion Creatr
2 of 3

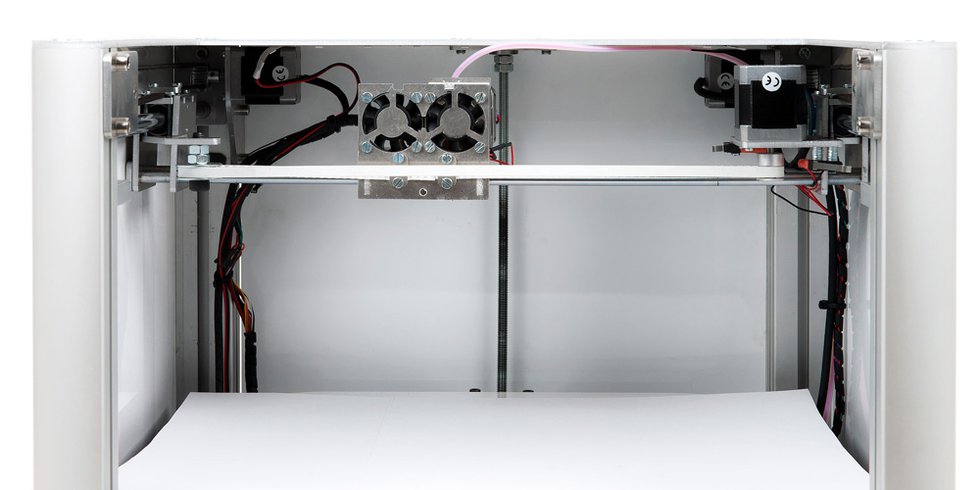

LeapFrog Creatr Internals
How long will it stay in this condition?!
3 of 3
Deepak Mehta (@deeeep)
Your smiling author, Deepak!
In the last year I have made big steps into the 3d printing world, assisted by my son's enthusiasm for the technology. My first purchase was the Makerbot Cupcake, which was sold in honour of Father's Day. Delivered in July, I could not wait for my son to return from vacation and to make the whole thing piece by piece... It was a very interesting experience and helped me understand the underlying principles thoroughly. The Cupcake was great fun, it let me dabble into the world of 3D printing, but soon we came across limitations: the first was the fact that the build volume was limited (my son's ambition to start printing his own glasses and never having to buy uncool glasses again was greatly limited by a 10 x 10x 10 cm build volume) and the second was the reliability (the Cupcake has the tendency to desire a machine-wide overhaul, just when you did not want to spend a whole day tinkering, but just a few minutes printing).
These limitations convinced me to start looking for the next printer. Research was made and a short list was created. The four major factors were community support, build volume, multiple extruder support and print quality. Based on these four factors, I ended up deciding for the Leapfrog Creatr (dual extrusion). More on the details of this decision can be found on my personal blog post. The main shift from the Cupcake purchase decision was the decision to buy a printer and not necessarily a kit, since the technology has matured enough to no longer need to have to know the underpinnings in detail to print.
Having placed the order for the Leapfrog Creatr as one of the first, I was able to enjoy the delivery of the very first dual extruder model of the Creatr. It now sits nicely under my desk, where my Hewlett Packard ColorLaserJet 2500N used to sit (about the same size: 50 x 60 x 50 cm (W x D x H). The size of the printer is overwhelming, make sure there is a big place to settle it! But that has mainly to do with the fact that the build platform is also accordingly huge. The leapfrog Creatr allows you to print objects of 25 x 27 x 30 cm (slightly less on X-axis with the dual extruders).
The printer is based on a RepRap Marlin using RAMPS 1.4, but the printer is engineered from the ground up and the quality of the parts is without compromise (subject to availability). All the parts are machined in aluminium and the case is also very solid and nicely masks the electronics. The printer is driven by Slic3r and Pronterface (which exists in Windows, Linux and Apple flavours). Leapfrog supplies a set of slic3r config files based on the machine shipped to you, so that you can start without the need to tweak — you can tweak as you want, but the default settings will work. Everything is nicely detailed on the website, from unpacking to installing the software and loading the filament (although the filament loading system has changed after the video was posted: an update is in works).
